Ultra -low -temperature firing gun spray guns mainly treat materials with small area, low temperature, and complicated shapes. The processing area range is 2 ~ 3mm. It can be matched with the original production flow line to achieve fully automatic online production and save labor costs.
Basic parameters

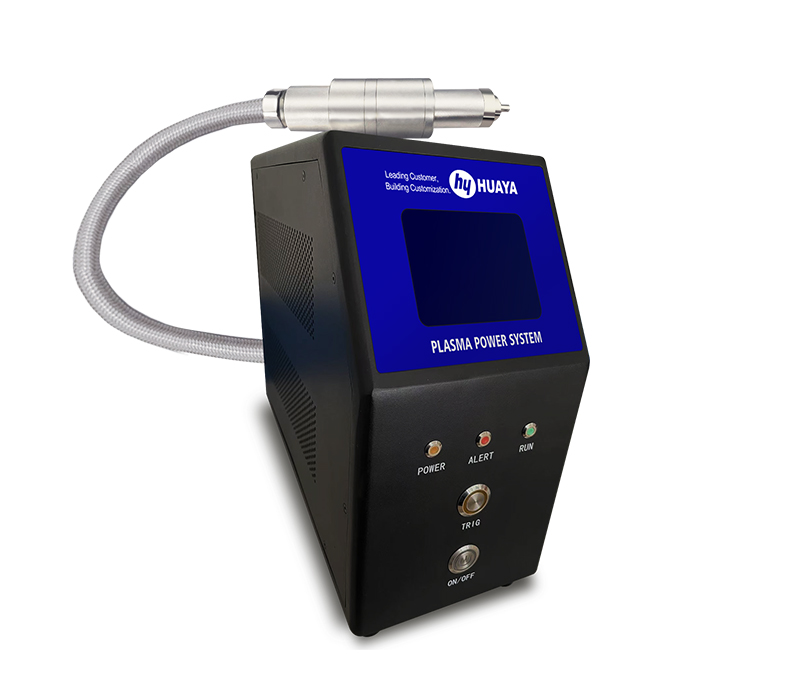

Model: AP-5001
Size: L460* W160* H315mm
Advantage
• Digital control, display screen display, real -time monitoring, strong anti -interference;
• Military-level hardware design, the use of the environmental temperature range can reach -25 ° C-50 ° C, which adapts to different rigorous scenarios;
• Using the TI brand's migration full bridge soft switch circuit, the relatively simulated hard switch circuit efficiency can be increased by more than 10%, the response time is less than 0.1S, and the anti -interference is strong;
• ARM chip equipped with ST brand, the human -computer interaction is simple and clear, the powerful remote debugging communication function, seamless application scenarios, independently developed software to intelligently judge the coordination of real -time collected data, which can achieve power self -matching , Stable and unchanged;
• Support RS-232 digital communication interface and simulation communication interface, powerful remote communication functions;
• It has protection functions such as temperature protection, overload protection, short -circuit, disconnection, leakage protection, and various misunderstanding protection functions;
Equipment parameters
| Function configuration | technical parameter | |
| weight | 10KG | |
| Power@Frequency | 200-650W 25K | |
| communication | RS232 interface (the system power and air pressure can be adjusted by the host computer) | |
| control method | Touch screen control system power and air pressure (full digital adjustment parameters) | |
| Process gas | CDA or N2 | |
| gun size | 056mm*L230mm | |
| Adjustable height of spray gun | 5~15mm (10~20mm for normal temperature spray gun) | |
| maximum processing width | 2~5mm(Room temperature tip gun 6~12mm)(Rotary spray gun 20~80mm) | |
| Nozzle diameter | 2.5mm | |
