Advantage

• Fully automatic connection design, left in and right out/right in and left out;
• Applicable to hundreds of product sizes;
• Can be equipped with a variety of tracks to achieve a variety of product operations;
• MFC wafer-level patented design to prevent safety accidents caused by gas leakage (high-risk gases such as hydrogen can be used);
• The patented design of high sealing cavity can be up to within 5pa;
• Water drop angle <10° (relative to cleaning surface material)
Main applications

• FPC/PCB;
• Display panel;
• Before lamination "after washing, before silk screen printing;
• 3C/new energy/automotive electronics, etc.
• Before silk screen printing, character printing, gold finger organic removal, marking, and flux;
Various configurations:
• VP-10L domestic configuration;
• VP-10L+ import configuration;
Equipment parameters
| Function configuration | technical parameter |

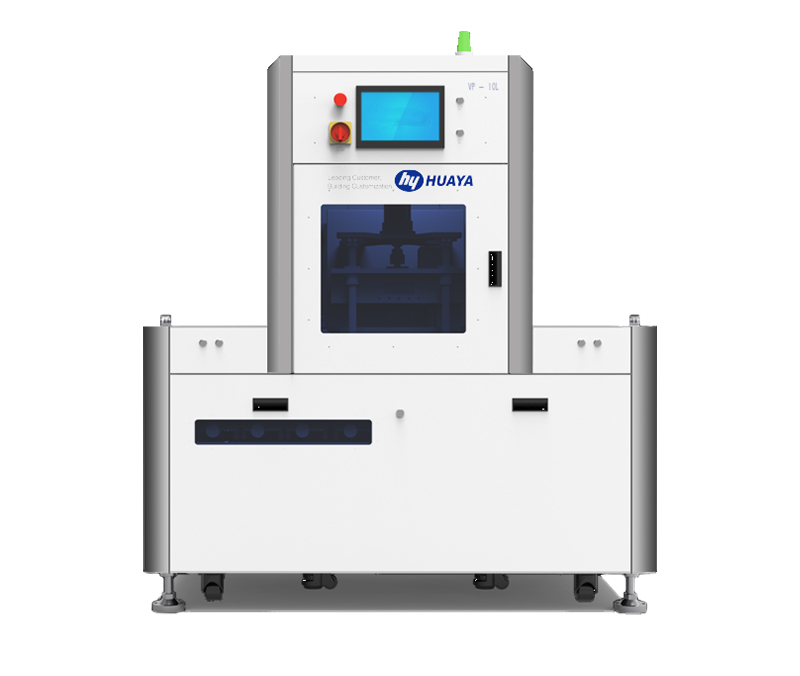

| model | VP-10L VP-10P |
| Dimensions | L1600*W1010*H1750(mm) |
| weight | 540kg |
| control | Programmable Logic Controller (PLC) |
| Vacuum time | 15s |
| Applicable product size | Width≤350·length≤370·length≤18 (mm) |
| Transmission direction | Mouth left ten right (standard configuration) Mouth right one left |
| Conveyor drive direction | stepper motor |
| power supply | Three-phase 380M |
| total power | 3.5KW |
| Industrial Gases | Oxygen Nitrogen Argon (can be customized |
| communication port | SMEMA connector |
| vacuum breaking time | 65s |
| delivery method | Belt transport + cylinder price t air pressure display |
| barometric pressure | 0.4-0.6Mpa |
| show | 10 inch touch screen |
| RF power | Adjustable within the range of 0-500W) 0-100W (adjustable within the range) |
